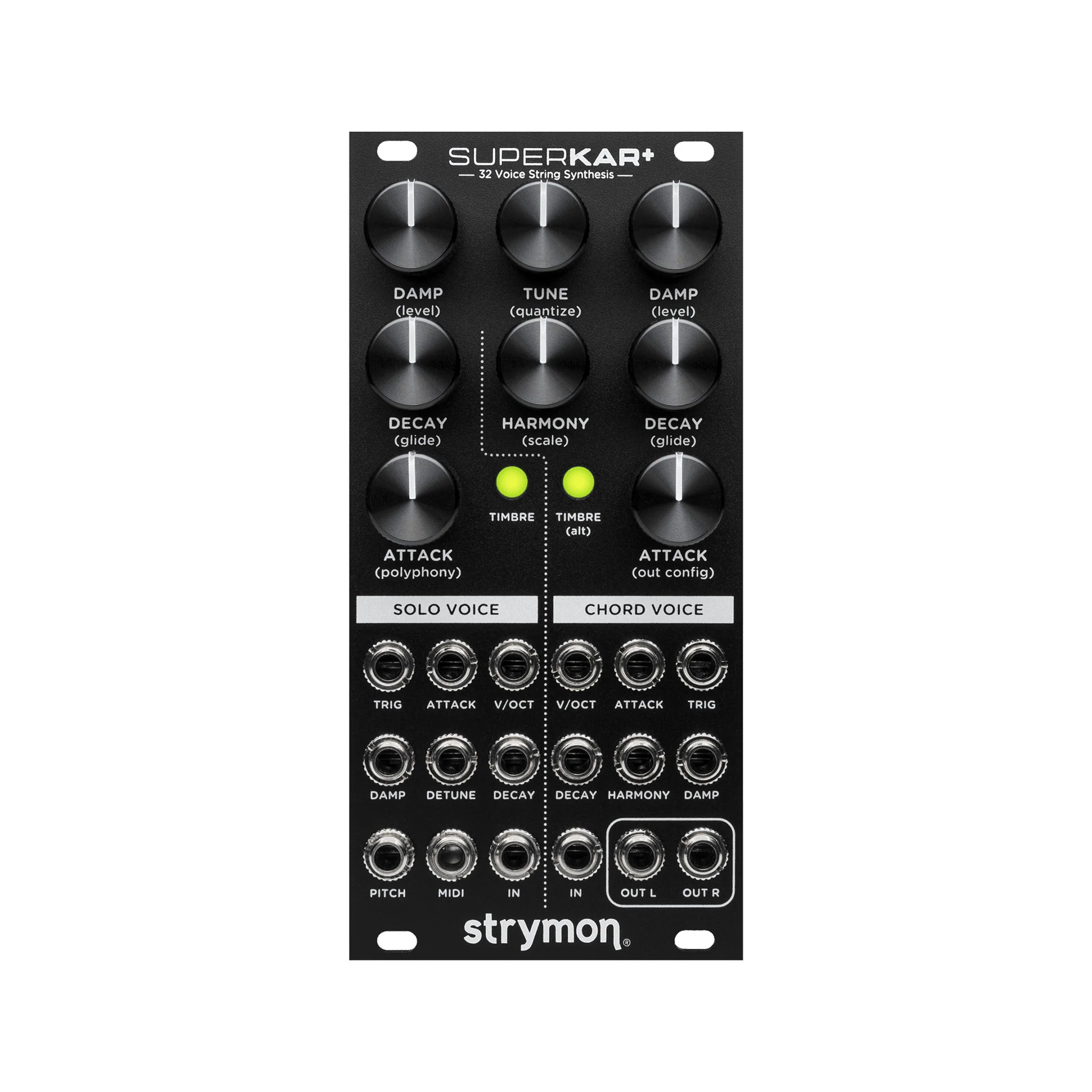

SuperKar+ is a Eurorack voice module that uses Karplus-Strong synthesis to create the sound of plucked or bowed strings, struck or blown pipes or tubes, or a suite of other sounds from percussive textures to legato melodies and chords with smart harmonies. This is Karplus-Strong synthesis at its most intuitive and captivating.

Karplus-Strong is a form of delay feedback synthesis, where every tone and texture is constantly in a state of varying tension. SuperKar+ is an engagingly responsive instrument, as tiny changes in attack/decay time and damping create an infinite variety of subtle or dramatic timbral shifts, and variable random per-note detuning can create lifelike realism.

Features:

• Karplus-Strong based voice module
• Two independent Voice channels – Solo Voice and Chord Voice
• Each Voice is polyphonic up to 16 notes
• Solo Voice plays single notes capable of sustaining simultaneously
• Chord Voice plays chord structures based on the root from the received V/
• Oct (Volt per Octave) CV
• Chord Voice includes fixed intervals with smart harmonies available
• Selectable Wide & Narrow Stereo, Split Voice, and Mono output options
• MIDI input controls the Solo Voice for a 16 part polyphonic experience
• with velocity sensitivity (when using MIDI, unplug the solo Voice TRIG and
• Solo Voice V/Oct CVs)
• Solo Voice is tuning stable to six octaves via CV and eight octaves via MIDI,
• and the Chord Voice is tuning stable to five octaves
• Stereo inputs and outputs
• Extensive CV control of parameters
• USB jack (located on the rear) for performing firmware updates
• 3.5mm TRS MIDI type A
• 520MHz ARM Superscalar processor
• 32-bit floating point processing
• 108 dB signal to noise ratio from input to output (A-Weighted)
• 111 dB signal to noise ratio for DAC (A-Weighted)
• Rack width — 12 HP
• Rack depth — 1.5” (38mm)
• Power requirements — +12V rail: 120mA, -12V rail: 120mA, +5V rail: 0mA
• Designed and built in the USA
