Walrus Audio Canvas Nano Line Isolator Guitar Effects Pedal, Harvest Series 2025
You are the artist. Your sound is the paint, and this is your canvas. The Canvas Nano Line Isolator is a Line Isolator (LI) in a compact form factor designed to be an ideal fit on a busy pedalboard or fly rig where space is limited, removing any resistance between you and your audience by giving a pristine sonic foundation to build your masterpiece upon. From houses of worship to the dive bar downtown, Canvas Nano LI is built to be the performance tool that goes wherever you are making your music.
Canvas Nano Line Isolator is a Passive device that converts your unbalanced signal into a balanced signal for interfacing properly with your recording interface or mixer at front-of-house. If you’re using an amp-in-a-box (DSP Guitar Rig), like Walrus Audio ACS1, or running an active acoustic or active bass guitar direct, then the Canvas LI is your new bridge to the front-of-house. The signal will remain at full volume and be converted to a balanced signal via the transformer connected to the XLR output. Less preamp gain will be required in LI mode. The Canvas LI packs everything you need from a LI into a compact-sized enclosure designed to look great right on top of your board.
Features:
- Compact design perfect for tight pedal board layouts or small fly rigs.
- Flat frequency response from 20Hz-20kHz
- Converts ¼” unbalanced input to XLR balanced output.
- Transformer isolated output.

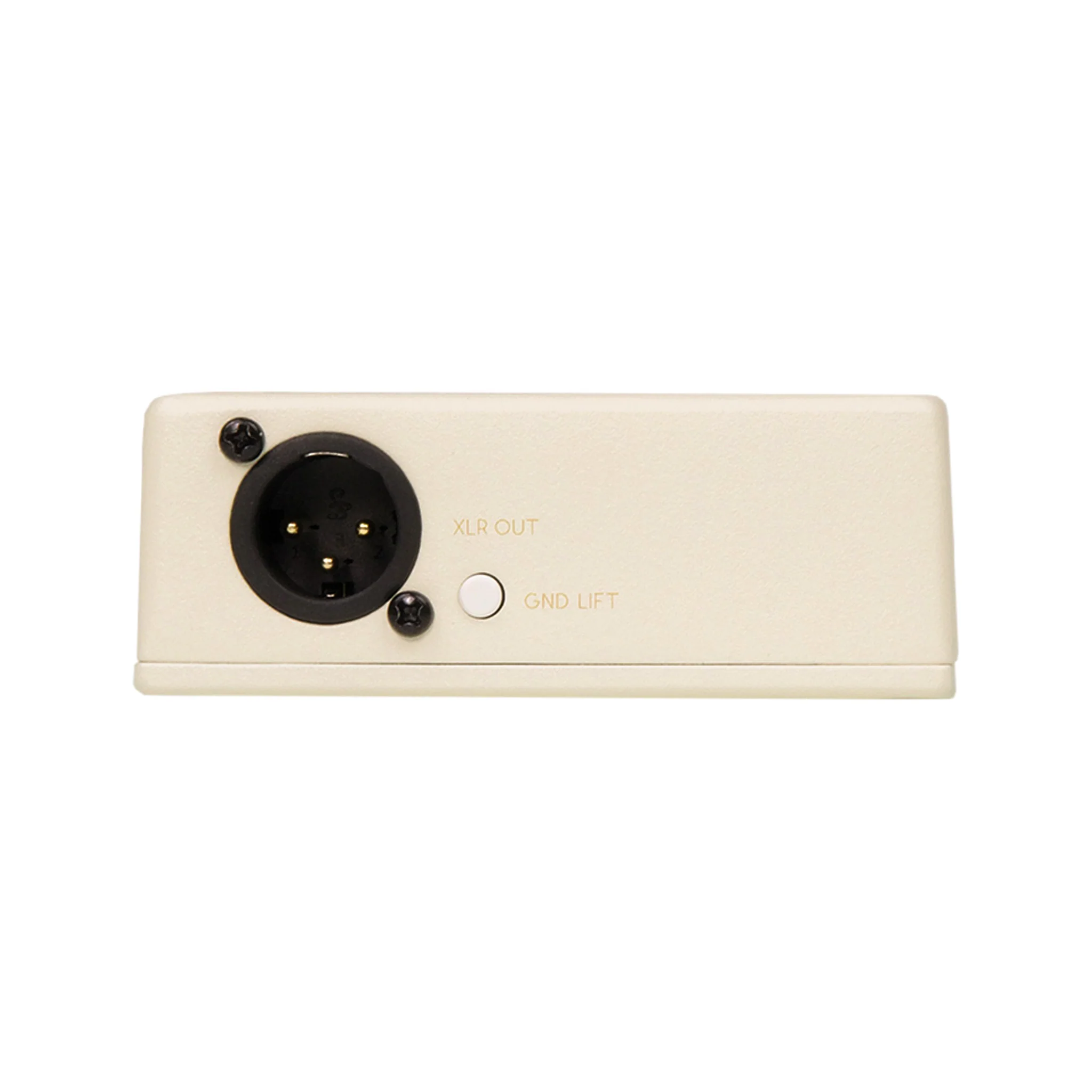

- GND Lift: Isolates the GND pin on XLR to help reduce hum if present. Leave out for normal operation.
- Custom wound transformers for low THD (Total Harmonic Distortion) and full frequency response.
- Passive device, no power source required
Specifications:
- Function: Unbalanced (TS) to Balanced (XLR) Line Isolator
- Switch: GND Lift (Ground Lift)

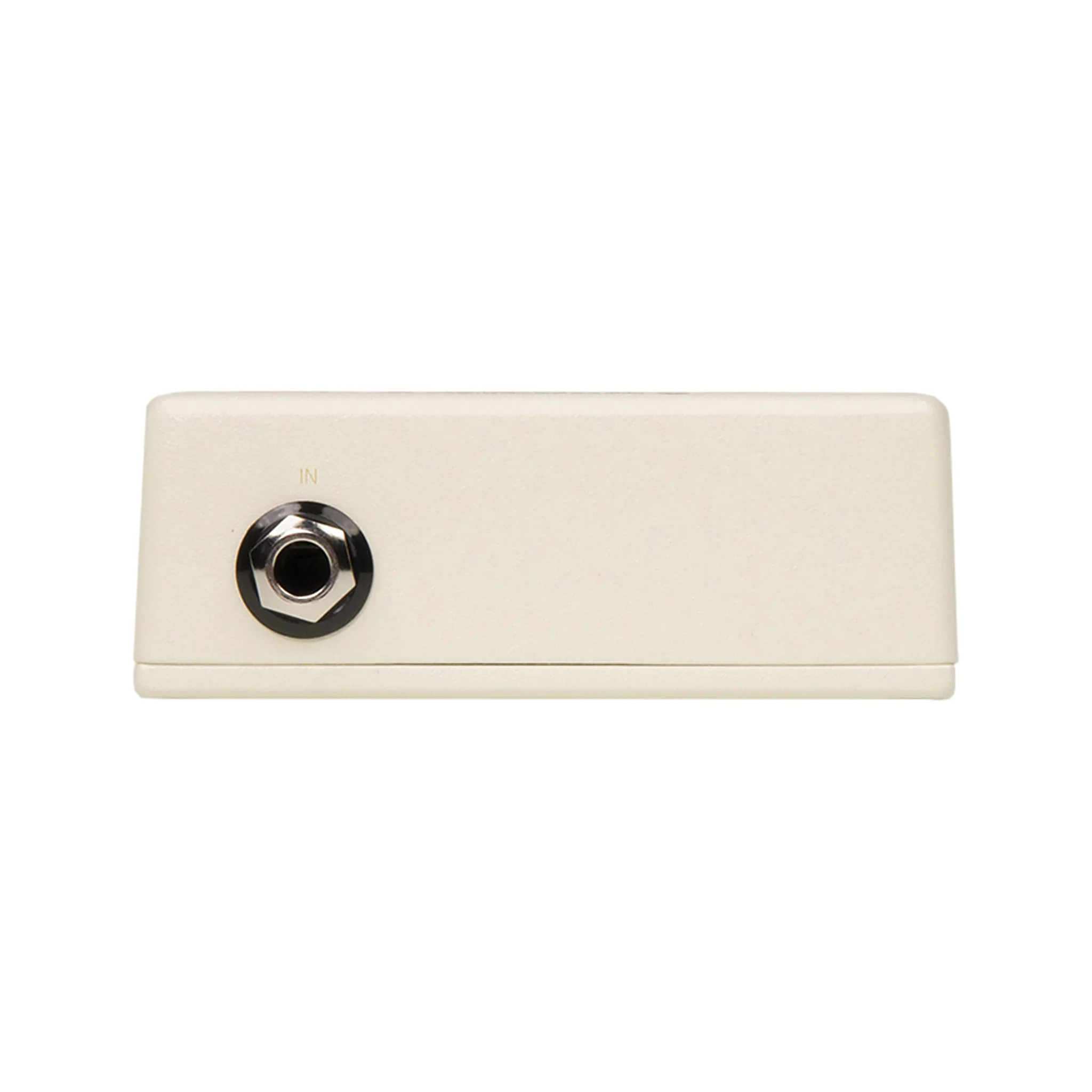

- Input: 1/4” Unbalanced (TS)
- Output: Balanced XLR
- Recommended Placement: End of a pedalboard, or after any line-level device
- Power Requirements: Passive operation (no external power needed)
- Dimensions: 1.69" (W) x 1.33" (H) x 3.74" (D) / 43mm (W) x 34mm (H) x 95mm (D)
