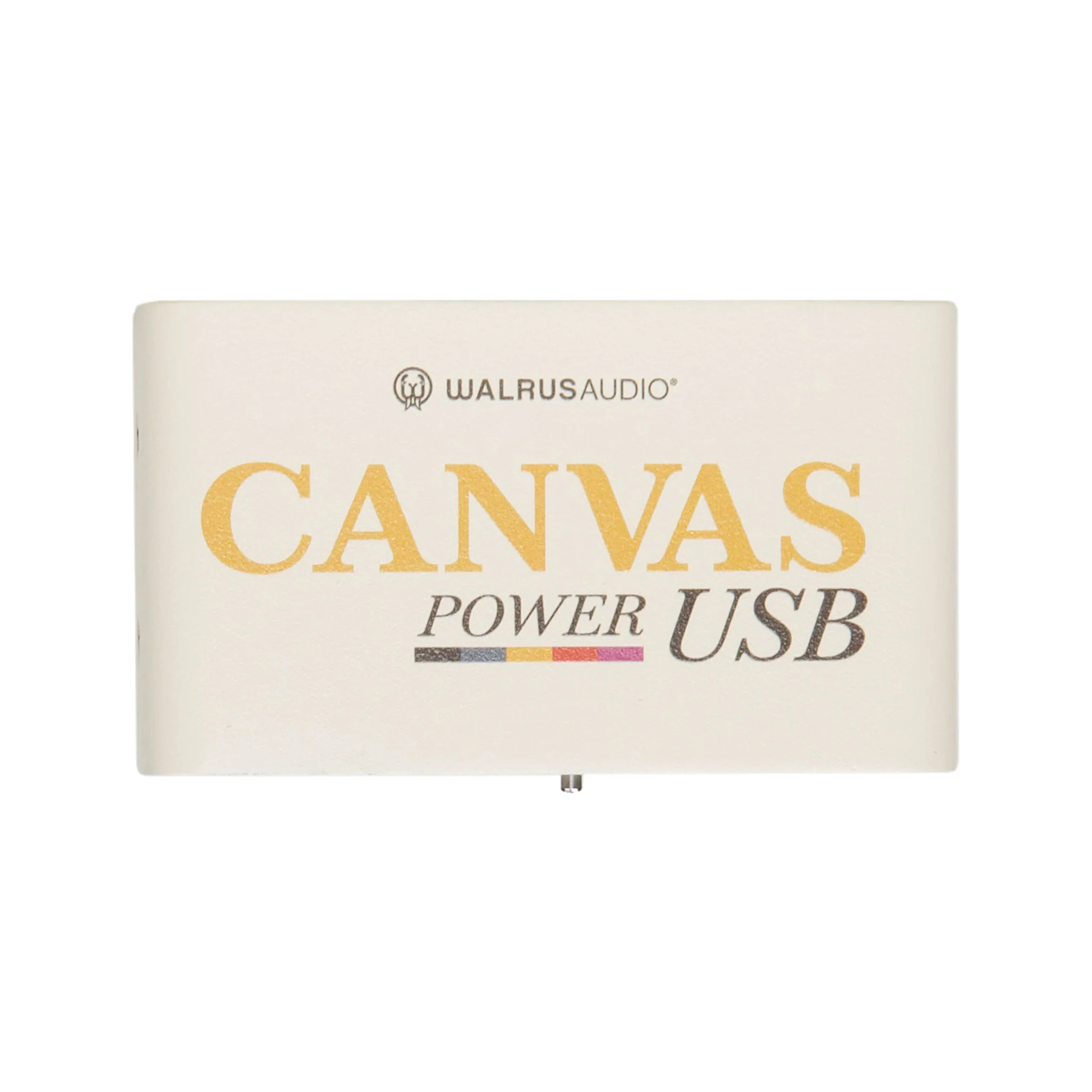

The Canvas Power USB allows your rig to be powered by most USB Power Delivery (PD) supplies like laptop chargers, high-power phone chargers, and even USB PD battery packs! With the Power USB, you can now take your rig to even more places. Got an outdoor festival this weekend and the dive bar with only one outlet for the whole band, the next? Grab a USB PD battery pack and you’ve got a wireless rig!

Features:

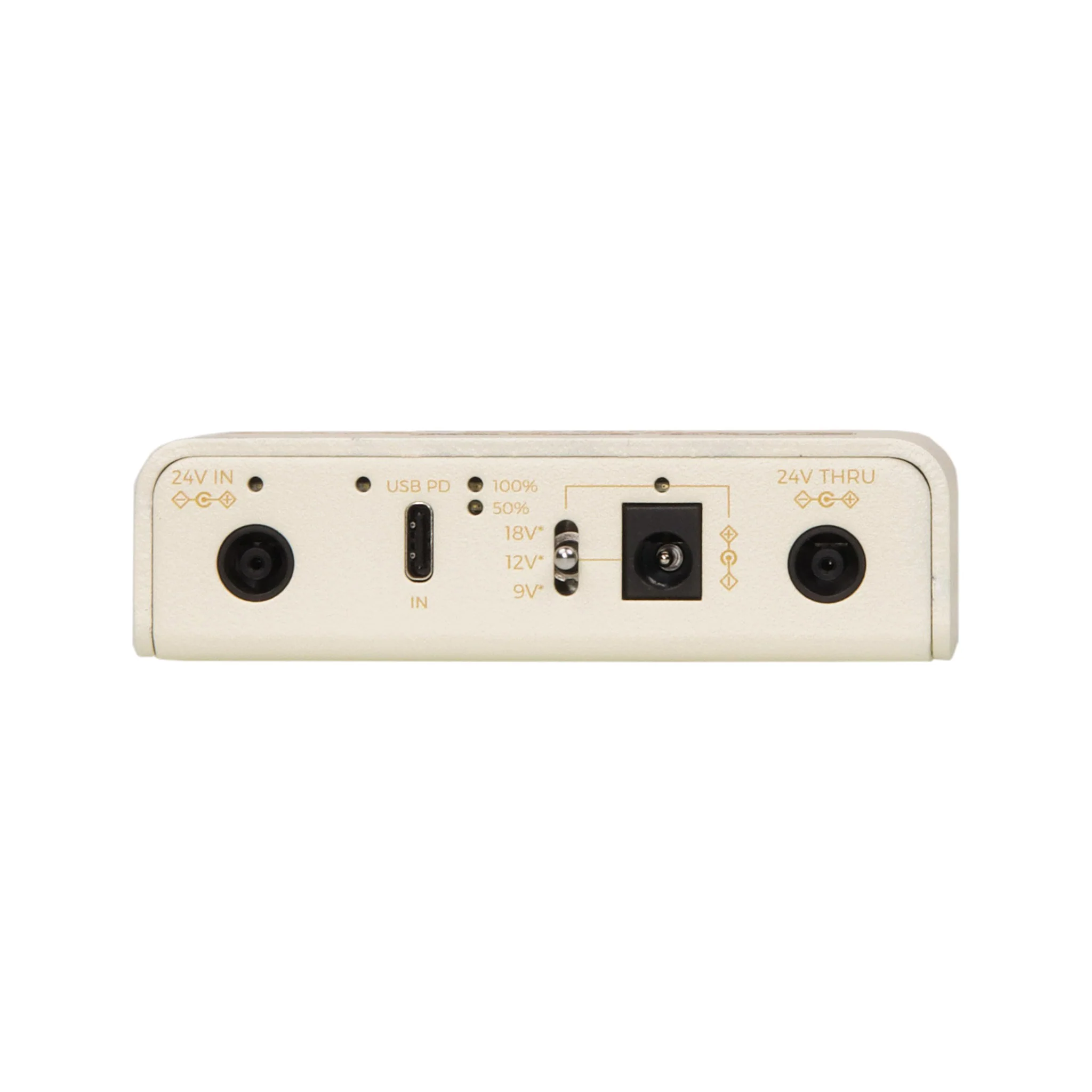

• Accept both 24VDC via an EIAJ cable OR a USB-C PD
• LED indicator (blue) above each input will light up, indicating the DC or USB-C cable is plugged in
• When running from USB-C PD power, two power indication LEDs will light up on 50% (amber) and 100% (red) power levels.
• 1 - 9V, 12V or 18V variable output
• 18V will deliver up to 250mA
• 12V will deliver up to 375mA
• 9V will deliver up to 500mA
• With the 24V THRU output, you can use the included EIAJ Link cable

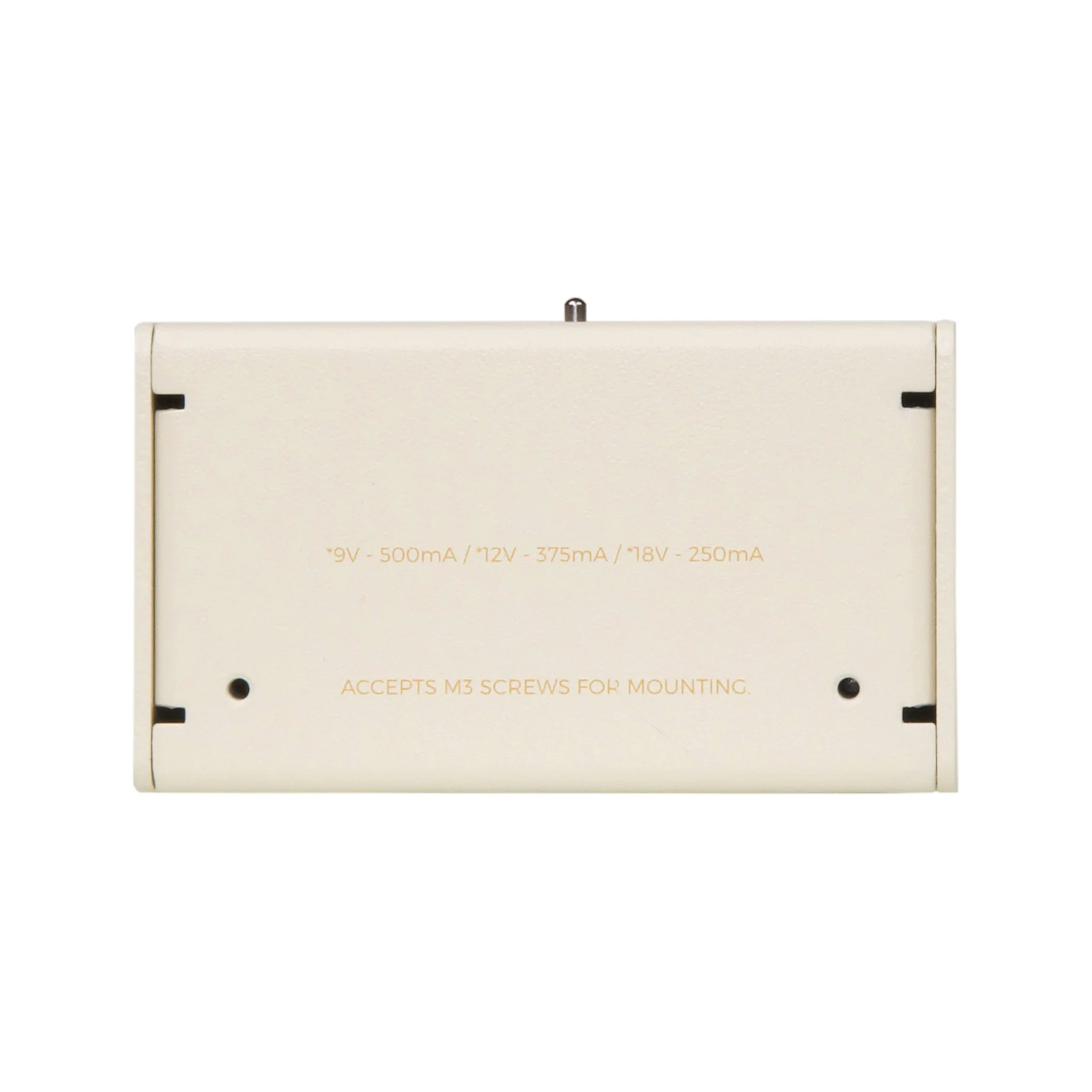

• Comes with a set of mounting brackets
• Battery pack not included. When selecting a battery pack make sure it is a PD (Power Delivery) battery

Specifications:

• Power Input: 24V EIAJ jack, 48W - 96W, USB PD input 30W minimum
• Power Output: If powered with external 24V supply, power output is up to 96W / If powered with USB PD supply, power output is up to 48W
• Includes: 1 x Canvas USB Power Supply, 18” Straight to right angle DC Cable – Qty. 1, 12” EIAJ Link Cable - Qty. 1, 3’ USB-C to USB-C Cable - Qty. 1, C style mounting bracket set w/screws, M3 Hex Key
• Dimensions: 94mm x 54mm x 24.5mm (3.7in x 2in x 1in)
• Weight: 136g (.3lbs)
